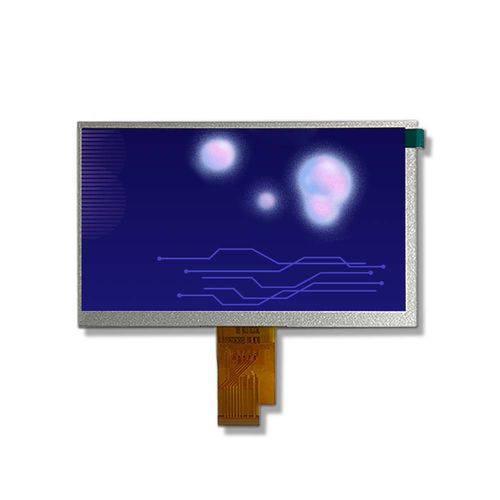

HG070WS049-V1 | 7.0 inch TFT LCD Panel | IPS Display | High Resolution | 1024x600 pixel | LVDS Interface |
This 7.0-inch IPS TFT LCD panel has a high-resolution 1024 x 600 pixel, which ensures that every pixel is rendered with exceptional detail and precision.
The IPS display technology employed in this panel sets it apart from traditional TN panels. IPS technology offers superior color reproduction, wider viewing angles, and enhanced gray-scale performance, ensuring that your content is faithfully represented from any angle.
Versatility is the hallmark of this exceptional display panel. Its compact and lightweight design allows for easy integration into a wide range of applications, from portable electronics to industrial equipment and beyond.
Whether you're developing a next-generation tablet, an innovative digital signage solution, or a cutting-edge industrial control system, the 7.0-inch IPS TFT LCD display is the perfect component to bring your vision to life.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 7.0 (inch)
Resolution: 1024x600 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 164.90 x 100.00 x 5.50 (mm) (W x H x D)
Active Area: 154.21 x 85.92 (mm) (W x H)
Luminance: 500 (cd/m2)
Interface: LVDS
Operating Temperature: -20~+70 (°C)
Storage Temperature: -30~+80 (°C)
