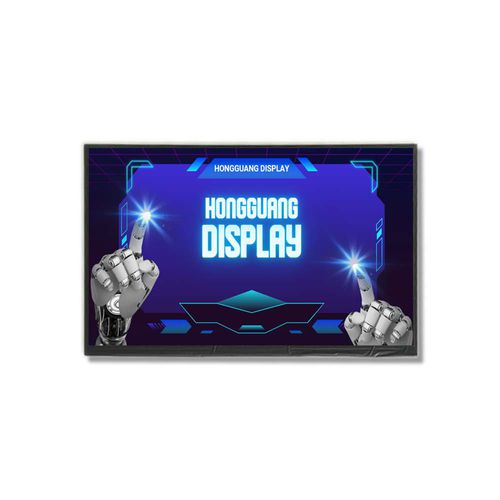

TFT LCD display module HG101WU076
IPS1920 x 120010.1"

TFT LCD display module
TFT LCD display module
TFT LCD display module
TFT LCD display module
TFT LCD display module
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS
Format
1920 x 1200
Screen size
10.1"
Applications
industrial, for medical equipment, control
Interface
LVDS
Configuration/mounting
outdoor
Other characteristics
custom
Width

225.13 mm
(8.8634 in)

Height

148.34 mm
(5.8402 in)

Depth

2.28 mm
(0.09 in)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

Elevate your display experience with the Hongguang Display 10.1-inch TFT LCD panel. Boasting a high luminance of 1000 cd/m2, this display panel delivers unparalleled brightness and visual clarity, ensuring exceptional visibility even in direct sunlight and making it the ideal choice for a wide range of applications. This TFT LCD features a high resolution of 1920 x 1200 for exceptional image quality and a wide viewing angle, which can be observed from any angle It is widely used in outdoor kiosks, self-service terminals, industrial automation, and control systems. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Display Mode Normally Black Optimal View - ALL Touch Screen Custom Active Area 217.73 x 136.09 (mm) (W x H) Luminance 1000 (cd/m2) Storage Temperature -30~+80 (°C)
