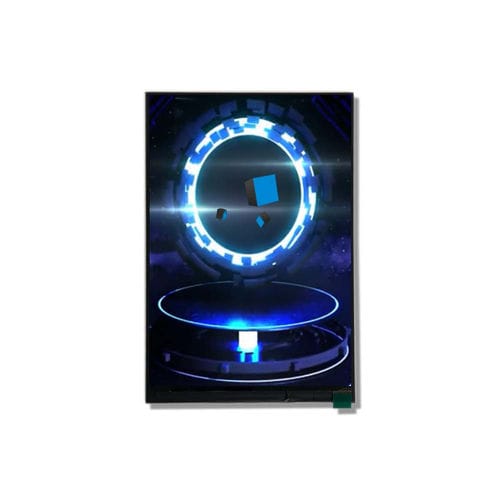

HG080WX038 | 8.0 inch TFT LCD Panel | IPS Display | High Resolution | 800x1280 | MIPI Interface | 500 Luminance |
This 8.0-inch IPS TFT LCD display for wide viewing angles and accurate color reproduction. It feature with high resolution of 800 x 1280 pixels for crisp, detailed visuals.
The high-resolution TFT LCD panel with 500 nits of luminance is ideal for a wide range of applications, from portable electronic devices and automotive infotainment systems to industrial control panels and medical imaging equipment, delivering stunning visuals and exceptional clarity.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 8.0 (inch)
Resolution: 800x1280(pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 114.60x 184.10 x 2.60 (mm) (W x H x D)
Active Area: 107.64 x 172.22 (mm) (W x H)
Luminance: 500 (cd/m2)
Interface: MIPI
Operating Temperature: -20~+60 (°C)
Storage Temperature: -20~+70 (°C)
