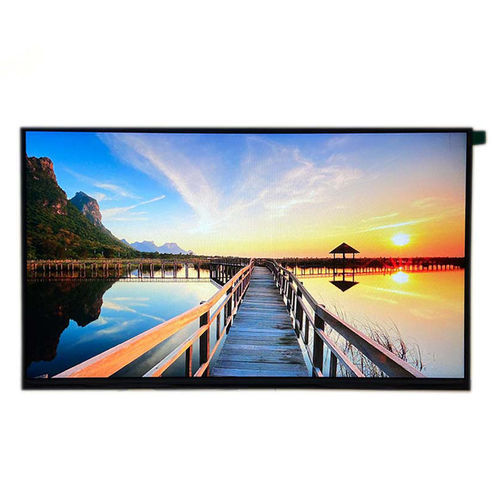

HG140FH005 | 14.0 inch TFT LCD Module | 1920x1080 Resolution | 1000 Luminance | Utra Wide Temperature | IPS | eDP Interface |
This 14.0-inch TFT LCD module, engineered to deliver outstanding visual performance across a wide range of applications. With a sharp resolution of 1920 x 1080 pixels, this display provides vibrant and detailed images that enhance user experience, making it ideal for both professional and consumer use.
The module boasts an impressive luminance of 1000 cd/m², ensuring clear visibility even in bright environments, which is essential for outdoor digital signage or any application requiring high brightness. Designed to operate reliably in extreme conditions, it features an ultra-wide temperature range, allowing for consistent performance in temperatures from -30°C to +80°C.
The advanced IPS technology enhances color accuracy and produces wide viewing angles, ensuring that images remain consistent and vivid from various perspectives. This characteristic is particularly beneficial in collaborative settings or public displays, where multiple viewers may be positioned at different angles.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 14.0 (inch)
Resolution: 1920x1080 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 317.52 x 186.76 x 4.90 (mm) (W x H x D)
Active Area: 308.16 x 173.34 (mm) (W x H)
Luminance: 1000 (cd/m2)
Interface: eDP
Operating Temperature: -30~+80 (°C)
Storage Temperature: -40~+85 (°C)
