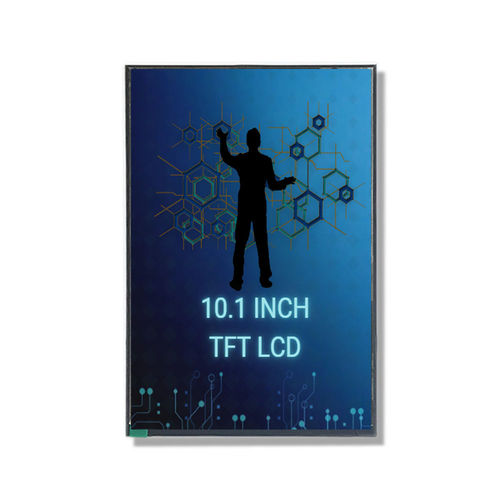

HG101WU042-V0 | 10.1 inch TFT LCD Module | High Resolution | 1200x1920 | MIPI Interface | IPS Display | 700 Brightness |
The 10.1-inch TFT LCD Module utilizes advanced IPS technology, this display provides wide viewing angles and accurate color reproduction, enhancing the overall user experience. The MIPI interface facilitates seamless integration with modern devices, allowing for efficient data transfer and compatibility across different systems.
It is an ideal display solution for a wide range of applications across various industries. Its high resolution of 1200 x 1920 pixels and brightness of 700 cd/m² make it perfect for:
● Tablets
● Automotive Displays
● Digital Signage
● Industrial Control Panels
● Medical Devices
The material is RoHS-compliant.
Diagonal: 10.1 (inch)
Resolution: 1200x1920 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 142.80 x 228.20 x 4.50 (mm) (W x H x D)
Active Area: 135.36 x 216.58 (mm) (W x H)
Luminance: 700 (cd/m2)
Interface: MIPI
Operating Temperature: -20~+60 (°C)
Storage Temperature: -30~+70 (°C)
