UHF RFID module HL7206D4

embedded

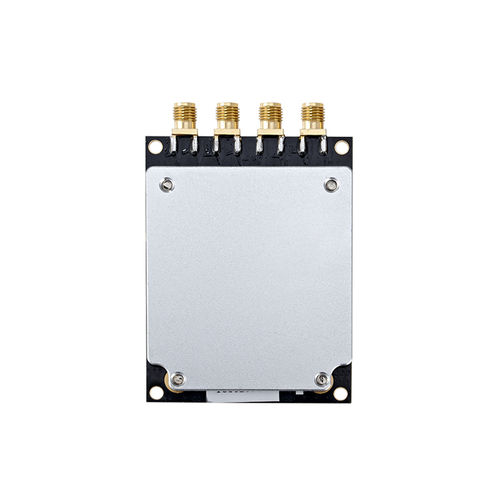

UHF RFID Module for 4 Ports RFID Reader HL7206D4 HL7206D4 module is a miniaturized UHF RFID reader. The core components of the core platform adopts R2000 which is a high-performance highly integrated reader IC and integrated with analog RF front-end and baseband digital signal processing modules etc. General Description The HL7206D4 module is a miniaturized UHF RFID reader. The core components of the core platform adopts R2000 which is a high-performance highly integrated reader IC and integrated with analog RF front-end and baseband digital signal processing module etc. Users only need to make power processing on the basis of the module, and can be very easy to use the API library to control module work, suitable for a variety of scenarios development. Typical Applications Split-type Fixed RFID Reader integration Integrated RFID Reader RFID Tag Writer Key Features UHF RFID Transceiver Frequency range: 840MHz - 960MHz Power consumption :1200mA @ +30dBm ü +5V single supply operation ISO 18000-6C/C1G2, ISO 18000-6Bsupport Decoding: FM0, Miller 2/4/8 Data rate: 40k ,160k,320k, 400k Fully interoperable in different global regulatory environments such as US, EU, GB Competitive differentiation 4 Antenna Port, Customized Service Supported
