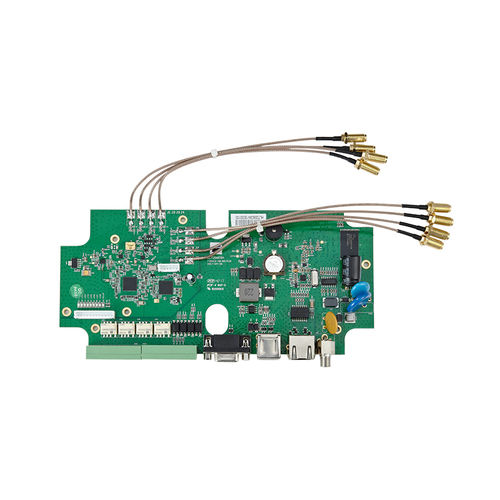

8-port UHF RFID Reader Board HL7206C8A
HL7206C8A is UHF RFID reader module board for developing 8-port fixed RFID reader. Based on Impinj R2000 chip platform, with 8 channels of SMA interfaces for RFID antennas. It support multiple-tag and long range reading
Features
ISO 18000-6C/6B, EPC Global C1G2 /C2G2 supportable UHF RFID transceiver
Multiple interfaces help to accelerate system development speed
Seamlessly compatible with RFID middleware
Fully interoperable in different global regulatory environments such as US, EU, GB
Different developing languages SDK meet different developer needs
Widely used in professional ODM / OEM split-type & integrated type RFID reader / writer
Specifications
Hardware, OS and Firmware Management
Processor ARM9, 400MHz
Operating System Linux 2.6
Firmware Upgrade Demo software / Telnet
API Support
Windows – .NET, C++ and Java SDK
Android - Java
Linux platform – C and Java SDK
Physical Characteristics
Dimensions 210mm×107mm×24mm
Weight 0.2Kg
RFID Characteristics
Air Protocols ISO/IEC18000-6B,6C / EPC C1Gen2
Chipset Impinj Indy R2000
Frequency 865MHz-928MHz
Programing Functions
Automatic reading/ White list
Breakpoint Resume / Match reading / Data filter
Output Power: 0dBm-30dBm (±1dBm) adjustable
Channel bandwidth: <200KHz
Reading Distance 0-20m (According to antenna & application)
Anti-collision Support multi-tag / intensive inventory
Work Mode: Fixed/hop frequency optional
Competitive differentiation
8 Antenna Port, Customized Service Supported
