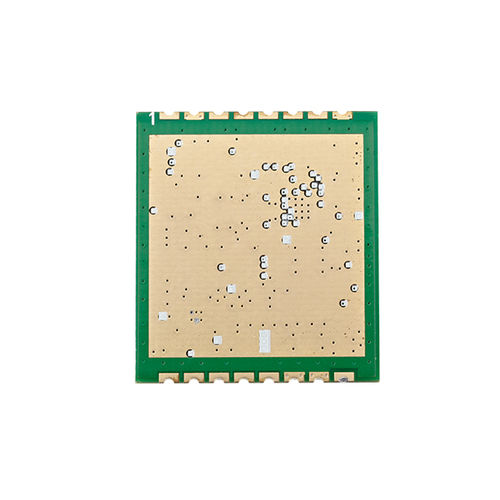

Embedded RFID module CL7206D3

UHF

Middle Reader Distance RFID Reader Module CL7206D3 The CL7206D3 module is a miniaturized and cost-effective UHF RFID reader module. The single-chip RFID SOC scheme is specially designed for the size limited embedded RFID application environment.The user only needs power supply to work through the UART port control module, which is easy to be integrated into various electronic equipment. Typical Applications Handheld RFID Reader integration Split-type Fixed RFID Reader integration Integrated RFID Reader Key Features UHF RFID Transceiver Frequency range: 840MHz - 960MHz maximum power output : +28dBm@1200mA Low voltage operation: +3.3V EPC global UHF Class 1 Gen 2 / ISO 18000-6C support Module package size：28mm x 25mm x 3.15mm Applications Widely used in professional integrated RFID Reader / RFID Tag Writer integration
