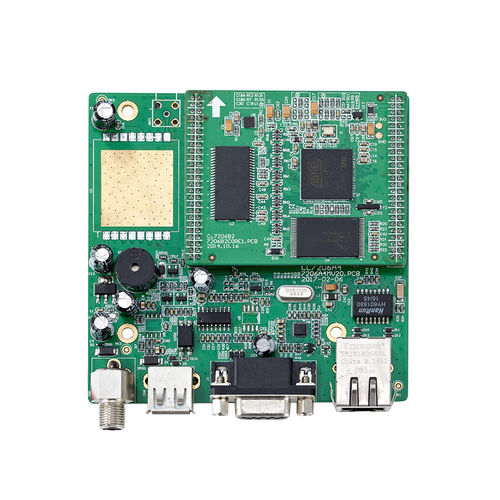

RFID Reader Development Board with RJ45 RS232 CL7206A4
It is partner for UHF RFID reader module, can be compatible with CL7206D2 and CL7206D3 module
If you want a small RFID reader writer, you need it
If you want a small reader for production line control, you need it
If you want a working station reader,you need it
Key Features
Compatible with CL7206D2 and CL7206D3
Communication Interface: RS232, RS485, Ethernet, USB
IO interface: 1 for IO input, 2 for IO output, 1 for wiegand output, IO out and wiegand is same port.
IO interface's level fluctuation trigger the reading function(Response time: <10ms)
Power by adapter or USB
RJ45 interface including network cable, 5V power cable and ground cable, RS485 signal interface
Parameter
Ethernet speed rate: 10M/100M automatic
RS232 serial rate: 115200bps (default), 19200 bps, 9600bps
RS485 rate: 115200bps (default), 19200 bps, 9600bps
Reading tags under low temperature -20±3℃ for 48hours, back to indoor temperature read tags normally.
Reading tags under high temperature +70±3℃ for 48 hours, back to indoor temperature read tags normally.
Working temperature range:-20℃~+70℃
Relative humidity: 5%RH~90%RH(+25℃)
