RFID tag CL7203E-80ABSfor industrial applicationsfor metal
Add to favorites
Compare this product
Characteristics
- Type
- RFID
- Material
- ABS
- Product applications
- for industrial applications, for metal
- Other characteristics
- for harsh environments, high-temperature, industrial, outdoor, water-resistant, rugged
- Width
20 mm
(0.8 in)- Length
80 mm
(3.1 in)- Thickness
3 mm
(0.1181 in)
Description

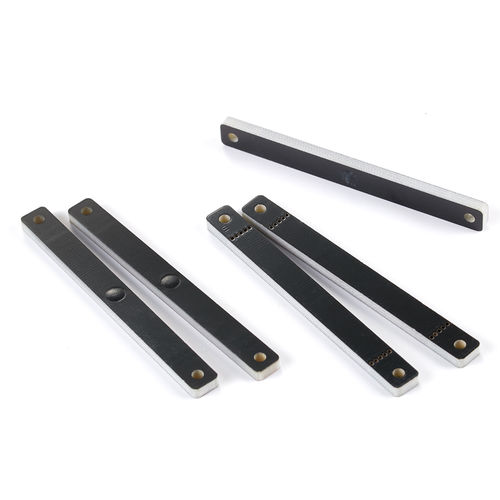

EPC C1G2 RFID Tag Anti-Metal Tag CL7203E-80
UHF RFID anti-metal tag, PCB material. Size: 80mm×20mm×3mm
Applications:Assets management, documents management,equipment management
Features
1. Reliable: Alien A3/ Impinj M4 chip
2. Small size: 80mm×20mm×3mm
3. High performance: reading distance up to 4.5m.
4. Flexible application: asset management, tools management, equipment management.
Specifications
Frequency 902MHz～928MHz; ETSI: 865-868MHz
Protocol ISO/IEC 18000-6C EPC global GEN2 Class1
Chip Alien H3 / Impinj M4
Polarization Liner polarization
Sensitivity -17dB -19dB
Reading range 4.5m (EIRP =30dBm)
Writing range 2m (EIRP =30dBm)
EPC area 96bits
User area 512bits
TID area 64bits
Access password 32 bits
Kill password 32 bits
Working mode Passive
Data storge >10years
Rewriting >100000times
Housing Material PCB
Weight 20g/pc
Package 200pcs/box
