RFID tag CL7206E-2509ABSceramicfor metal
Add to favorites
Compare this product
Characteristics
- Type
- RFID
- Material
- ABS, ceramic
- Product applications
- for metal
- Other characteristics
- for harsh environments, high-temperature, industrial, outdoor, water-resistant, rugged
- Width
9 mm
(0.4 in)- Length
25 mm
(1 in)- Thickness
3.5 mm
(0.1378 in)
Description

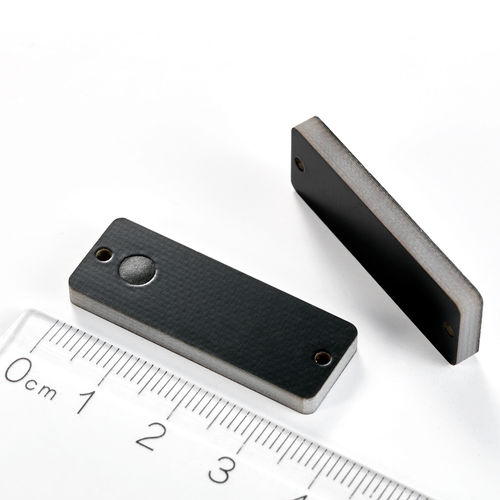

ISO18000-6C RFID Ceramic Anti-Metal Tag CL7206E-2509
UHF RFID anti-metal tag, ABS+ Ceramic. Size: 25mm×9mm×3.5mm
Applications: Outdoor equipments management, power cable management,Assets management, tool management
Features
1. Reliable: Alien A3/ Impinj M4 chip
2. Small size: 25mm×9mm×3.5mm
3. High performance: reading distance up to 5m.
4. Flexible application: asset management, tools management, equipment management.
Specifications
Frequency 902MHz～928MHz; ETSI: 865-868MHz
Protocol ISO/IEC 18000-6C EPC global GEN2 Class1
Chip Alien H3 / Impinj M4
Polarization Liner polarization
Sensitivity -17dB -19dB
Reading range 5m (EIRP =30dBm)
Writing range 2m (EIRP =30dBm)
EPC area 96bits
User area 512bits
TID area 64bits
Access password 32 bits
Kill password 32 bits
Working mode Passive
Data storge >10years
Rewriting >100000times
Housing Material PCB
Weight 3.25g/pc
Package 200pcs/box
