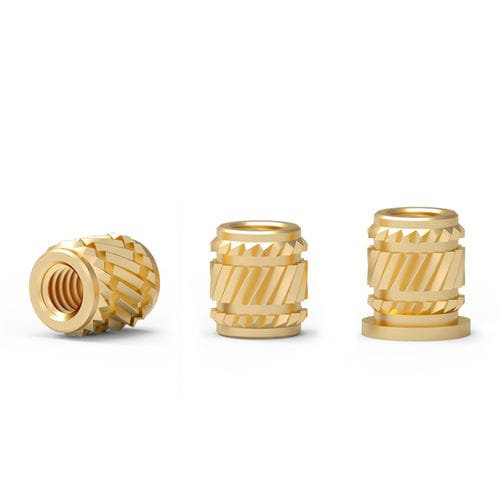

Threaded insert MT series

knurledstainless steelaluminum

1: Mainly used in housing of mobile phone,notebook and small electric devices 2: Thread ranges from M1 to M2.5 3: Designed for thermoplastic plastics (PPS, ABS, PP, etc.) Model Code-A (Thread size) x L(Insert length)-OD(Insert diameter) or HD(Head diameter)+Material+Finish General description: A miniature insert with all the design features and characteristics of the Tech-Sonic range, it is ideal for today's smaller plastic products and can use very small screws, providing full reusability without thread stripping risk of problems. Advantage： Reusable threads for miniature applications. Eliminate stripping issues. Double head - auxiliary automatic feeding. Allows space-saving boss design. Can be installed by heating or ultrasonic. Installation: Fasteners are designed for installation using a preheat process. Care must be taken to ensure that the fasteners soften but do not melt the plastic. This will avoid unsightly glitter on top of the blade. Excessive pressure should be avoided as this may cause the insert to be forced into the hole without allowing the plastic to soften and flow around the surface profile.
