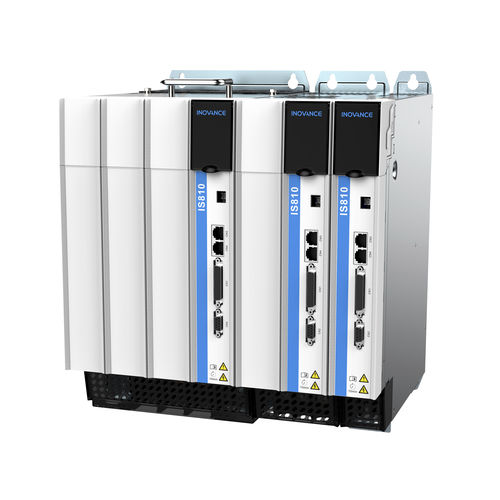

Three-phase servo-drive IS810N-INT series

digitalEtherCATCANopen

General Info. • High current loop bandwidth: >4 kHz • High speed loop bandwidth: 1.2 kHz • Double STO (SIL 3) • Seven digital inputs (2 fast inputs) + 2 digital outputs • Supply voltage: three-phase 380-440 Vac, +10 ~ -15%, 50/60 Hz • Communication options: • EtherCAT ‒ CiA 402 Motion Profile • CANopen ‒ slave • In-built keypad • Fine tune with PC software (InoServoShop) • Inertia auto-tuning (on-line/off-line) • Automatic loop gain tuning • Adaptive notch filter (5 filters available) • Automatic/manual damping filter for low frequency resonance
