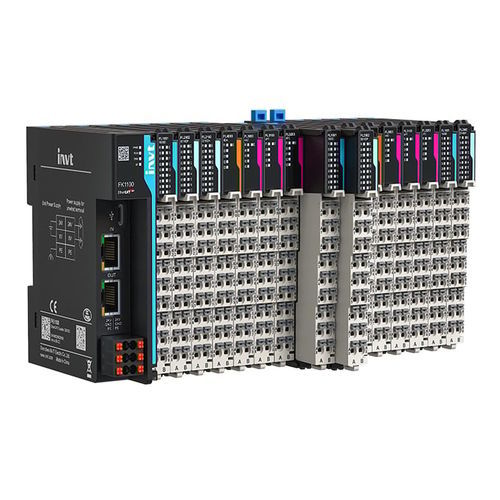

Digital I/O system Flex Series I/O

Fieldbusmulti-channelmanual

INVT Flex series I/O system is a fexible, reliable,and efficient signal transmission system. The system is able to access to multiple standard communication networks, and equipped with rich signal modules to facilitate the deployment of personalized solutions while saving cabinet space, helping you develop more competitive personalized solutions. * Flexible：Rich communication couplers and I/O modules enable the fexible design of control systems. * Efficient：Fully upgraded F-BUS bus with a 100-megabit communication rate creates a high real-time communication system. * Reliable：Tight connection using the gold plating process ensures stable and reliable signal transmission. * Compact：Ultra-thin design significantly saves cabinet space and helps the equipment layout miniaturization. * Easy installation：The wiring diagram is printed on the module so the wiring can be completed without referencing a user manual. By scanning the QR code on the front, you can obtain an electronic version of the user manual for more information. * Tool-free quick connection：PUSH IN connection technology enables easy installation without any tools, with a 70% improvement in wiring efficiency compared to screw terminals, effectively reducing installation time while ensuring good reliability. * Clear identification：Different modules are distinguished by color blocks and auxiliary codes, making identification and positioning more accurate and convenient. * Channel-level diagnosis：Each channel has a status indicator light, and each module can independently display its working status. The operating status and fault information are clear at a glance.
