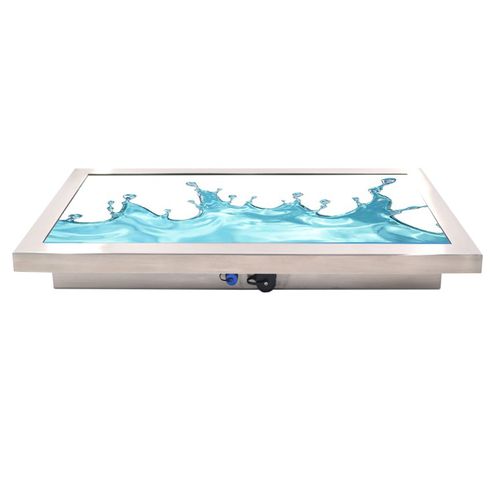

Full IP66 monitor ITD65CMG1IP*1

LCDprojected capacitive touchscreeninfrared touchscreen

- Exceptional quality and highly engineered industrial heavy duty monitors - Accuracy in high-use applications - Long lasting product cycle for continuity thru all phases of project ITD full IP66 LCD touchscreen displays are fully-integrated units that combine touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. They are built for demanding applications with high industrial requirement, such as food processing, beverage, pharmaceutical and tobacco industries for operator control and monitoring. ITD full-range selection is provided in screen sizes from 7”~65”. Display Active Screen Size (mm) 1428.48(H) ×803.52(V) Aspect Ratio 16:9 Colors 16.7M Brightness (cd/m2) 400nits Contrast Ratio 4000:1 View Angels 89/89/89/89 Operation Operating Temperature Range -10~60°C (-20~70°C Optional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Power Indicator N/A Power Input DC 12V Power Consumption 260W
