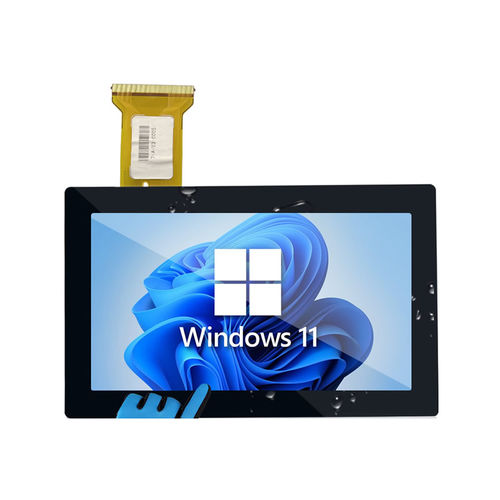

LCD module ITD07KITT5xxxxprojected capacitive touchscreencustom1024 x 600
Add to favorites
Compare this product
Characteristics
- Type
- LCD, projected capacitive touchscreen
- Format
- custom, 1024 x 600, 1920 x 1080
- Screen size
- 7"
- Applications
- control, industrial, for tank level measurement, fridge, instrumentation, for medical equipment, temperature measurement, HMI, for control panels, information, for force measurement, time date temperature, for the environmental industry, for marine applications, for remote control, for transportation, for vehicles, for weighing devices, for CO2 measurements
- Other characteristics
- RS-232, cost-effective, electronic, wide-viewing angle, high-contrast, indoor, high-brightness, HDMI, LVDS, LED-backlit, USB Type-C, VGA, sunlight-readable, open frame, IP65
- Length
Max.: 145.6 mm
(5.732 in)Min.: 135.6 mm
(5.339 in)- Width
Max.: 95.92 mm
(3.7764 in)Min.: 85.92 mm
(3.3827 in)
Description
- Anti-glare, anti-reflective, anti-finger surface treatment optional
- Tempered cover glass with 7H surface hardness
- Optical bonded between touch panel and LCD panel optional
OVERVIEW
ITD’s LCD touchscreen Kit is like an industrial touchscreen monitor without an enclosure that you would install or build into a piece of equipment, device, enclosure, fixture, or other housing of your design. The touch panels can be air bonded or optical bonded on the LCD panels. Optical bonding will improve the stability&duribility, reduce the reflection, promote the viewing angle, and enhance the perceived brightness. It also provides resistance to dust particles and shows much better display effect. We offer sizes ranging from 7″ to 65″. Video inputs can include VGA, DVI, HDMI, DP or AV. LVDS&USB cables, LED driver board, OSD menu board, video cable can be all included.
Touch Drivers - Windows, Linux, Android, Mac, Raspberry Pi
Touch Life - 50,000,000times/click
Surface Hardness - 7H
Surface Treatment - Anti-Glare, Anti-Reflective, Anti-Finger optional
Glass Strengthening - Chemically Strengthened
Operation
Operating Temperature Range - -20~70°C
Humidity Range (RH) - 10-90%
24/7/365 Use - Supported
Power
Power Input - DC 12V, DC9~36V input optional
Power Consumption - 6W
