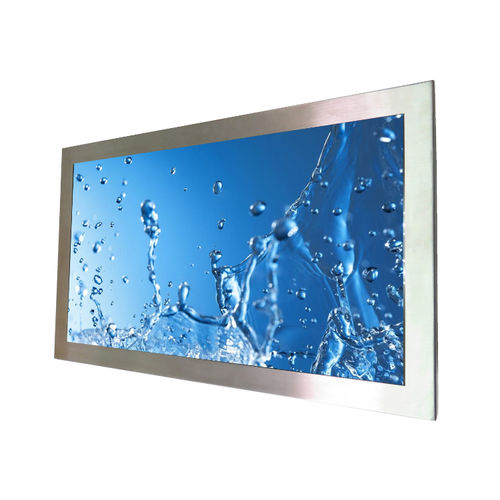

LCD panel PC ITD55PPCG1IPHB**LED backlightPCAP capacitive touch screen55"
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, LED backlight, PCAP capacitive touch screen
- Display size
- 55"
- Resolution
- 1920 x 1080
- Processor
- Rockchip RK3399 SoC, Intel® Celeron J1900, Intel® Celeron® J6412, Intel® Celeron® J4125, 8th Generation Intel® Core™, 12th Generation Intel® Core™, 10th generation Intel® Core™, 9th Generation Intel® Core™, Rockchip RK3568, ARM, Intel® Core i5, x86, 11th Generation Intel® Core™, Rockchip RK3288 SoC, 8th generation Intel® Core™ i7, Intel® Core i7, Intel® Core i3, 5th generation Intel® Core™, 8th generation Intel® Core™ i3, Rockchip RK3588S, 6th generation Intel® Core™, 7th Generation Intel® Core™ i7, 8th generation Intel® Core™ i5
- Memory
- DDR5 SO-DIMM, RAM, DDR4 DRAM, DDR4 SO-DIMM
- Construction
- modular, open frame, housed, in metal housing, metal chassis
- Mounting
- VESA mounting, wall-mounted, kiosk, chassis-mounted
- Applications
- industrial, for IoT applications, for the food industry, for data acquisition systems, for the chemical industry, medical, data acquisition, for the pharmaceutical industry, for marine applications, for railway, for agricultural applications, for self-service information kiosk, for check-in kiosk
- Protection level
- rugged
- Other characteristics
- all-in-one, HMI, WiFi, Bluetooth, SCADA, high-performance, sunlight-readable, high-brightness, indoor, outdoor
- Memory size
Min.: 4 GB
Max.: 64 GB
Description
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.
