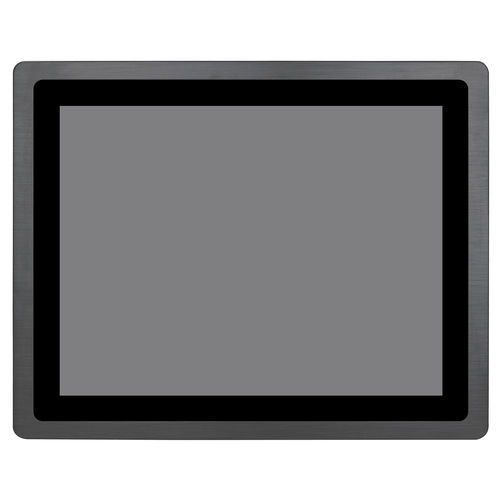

15" panel PC ITD15PPCG1X**LCDLED backlightPCAP capacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, LED backlight, PCAP capacitive touch screen, resistive touch screen
- Display size
- 15"
- Resolution
- 1024 x 768
- Processor
- Intel® Celeron® J6412, Rockchip RK3399 SoC, Rockchip RK3568, 7th Generation Intel® Core™ i7, ARM, Intel® Celeron J1900, Intel® Celeron® J4125, x86, Intel® Core i5, Intel® Core i7, Intel® Core i3, 8th Generation Intel® Core™, 12th Generation Intel® Core™, Rockchip RK3288 SoC, 9th Generation Intel® Core™, 11th Generation Intel® Core™
- Memory
- RAM, DDR5 SO-DIMM, DDR4 DRAM
- Operating system
- Linux, Windows, Android
- Construction
- fanless
- Applications
- data acquisition, industrial, for IoT applications, for the food industry, for railway, for agricultural applications, for self-service information kiosk, for data acquisition systems, POS, for the chemical industry, for the mining industry, for the pharmaceutical industry, for hazardous areas, for medical applications, for marine applications, point-of-care, for check-in kiosk
- Protection level
- IP65, rugged, robust, NEMA 4
- Other characteristics
- HMI, SCADA
- Memory size
Max.: 64 GB
Min.: 4 GB
Description
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountpanel PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mountpanel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.
