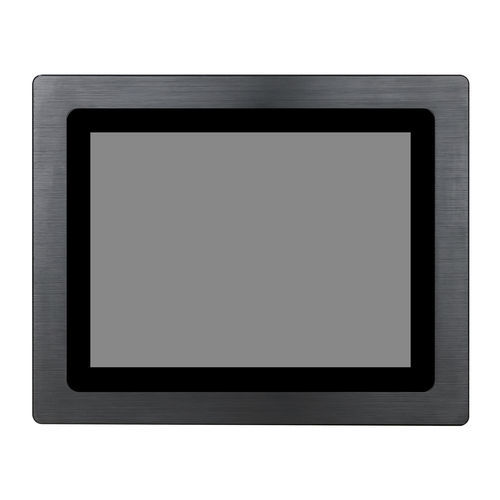

Panel-mount monitor ITD10PMN1X1

LCDPCAP capacitive touch screenresistive touch screen

-Optional touchscreens like resistive, PCAP -All steel construction designed for harsh and industrialenvironments -True flat surface, easy to clean -Easy-to-install embedded/panel mounting with clamps -Robust design with aluminum NEMA 4/ IP65 front panel -Accuracy in high-use applications -Long lasting product cycle for continuity thru all phases of project OVERVIEW The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications. Screen Diagonal (Inch) 10.4” Display Active Screen Size (cm) 210.4(H)×157.8(V) Aspect Ratio 4:3 Physical Resolution 800×600 or 1024×768 Maximum Resolution Supported 1920×1080 Colors 262K Brightness (cd/m2) 300 Contrast Ratio 600:1 View Angels 80/80/70/70 Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime Touch Options Resistive, PCAP Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Video Input 1 × VGA 1 × DVI-I 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Power Connector 1 × DC2.0 Operating Temperature Range -10~60°C (-20~70°COptional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input DC 12V Power Consumption 17.5W
