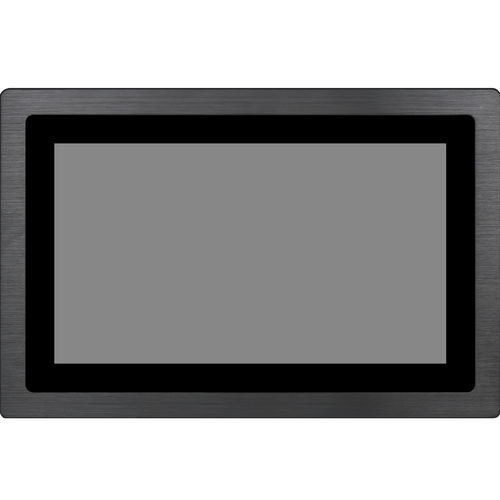

Panel-mount monitor ITD13PMN1X31

LCDresistive touch screenLED backlight

-Optional touchscreens like resistive, PCAP -All steel construction designed for harsh and industrialenvironments -True flat surface, easy to clean -Easy-to-install embedded/panel mounting with clamps -Robust design with aluminum NEMA 4/ IP65 front panel -Accuracy in high-use applications -Long lasting product cycle for continuity thru all phases of project OVERVIEW The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications. Screen Diagonal (Inch) 13.3” Display Active Screen Size (cm) 293.76(H)×165.24(V) Aspect Ratio 16:9 Physical Resolution 1920×1080 Maximum Resolution Supported 1920×1080 Colors 16.7M Brightness (cd/m2) 300 Contrast Ratio 700:1 View Angels 85/85/85/85 Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime Touch Options Resistive, PCAP Touch Dr5ivers Windows, Linux, Android, Mac, Raspberry Pi Video Input 1 × VGA 1 × DVI-I 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Power Connector 1 × DC2.0 Operating Temperature Range -10~60°C (-20~70°COptional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input DC 12V Power Consumption 21.9W
