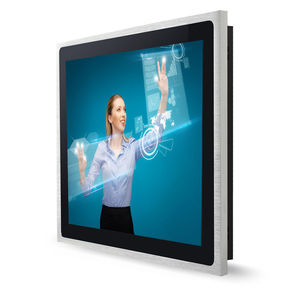

Panel-mount monitor ITD22PMN1X31
LCDresistive touch screenLED backlight

Panel-mount monitor - ITD22PMN1X31 - Shenzhen ITD Display Equipment Co., LTD - LCD / resistive touch screen / LED backlight
Panel-mount monitor - ITD22PMN1X31 - Shenzhen ITD Display Equipment Co., LTD - LCD / resistive touch screen / LED backlight
Panel-mount monitor - ITD22PMN1X31 - Shenzhen ITD Display Equipment Co., LTD - LCD / resistive touch screen / LED backlight - image - 2
Panel-mount monitor - ITD22PMN1X31 - Shenzhen ITD Display Equipment Co., LTD - LCD / resistive touch screen / LED backlight - image - 3
Add to favorites
Compare this product


Characteristics

Technology
LCD, PCAP capacitive touch screen, resistive touch screen, LED backlight
Display size
22"
Resolution
1920 x 1200, 1680 x 1050
Mounting
panel-mount
Applications
industrial
Other characteristics
HDMI, USB, VGA-DVI port, aluminum, IP65, rugged, NEMA 4

Description

-Optional touchscreens like resistive, PCAP -All steel construction designed for harsh and industrialenvironments -True flat surface, easy to clean -Easy-to-install embedded/panel mounting with clamps -Robust design with aluminum NEMA 4/ IP65 front panel -Accuracy in high-use applications -Long lasting product cycle for continuity thru all phases of project OVERVIEW The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments.A new design combined with PCAP or resistive touch makes true flat surface, easy to clean. Industrial panel mount LCD monitors are ideal for system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications. Screen Diagonal (Inch) 22” Display Active Screen Size (cm) 473.76(H)×296.1(V) Aspect Ratio 16:10 Physical Resolution 1680×1050 Maximum Resolution Supported 1920×1200 Colors 16.7M Brightness (cd/m2) 250 Contrast Ratio 1000:1 View Angels 85/85/80/80 Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime Touch Options Resistive, PCAP Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Video Input 1 × VGA 1 × DVI-I 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Power Connector 1 × DC2.0 Operating Temperature Range -10~60°C (-20~70°COptional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input DC 12V Power Consumption 26.25W
