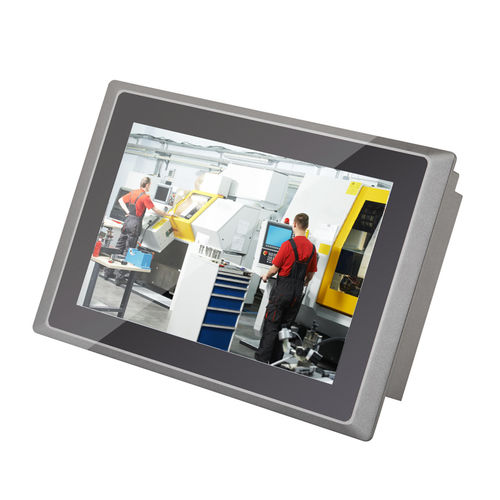

LCD panel PC ITD101PPCT5B-xxxxtouch screen10.1"1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, touch screen
- Display size
- 10.1"
- Resolution
- 1280 x 800, 1920 x 1200
- Processor
- Intel® Core i7, Intel® Celeron J1900, Intel® Celeron® J6412, Intel® Celeron® J4125, ARM, Intel® Core i5, x86, 7th Generation Intel® Core™ i7, 11th Generation Intel® Core™, 8th Generation Intel® Core™, 10th generation Intel® Core™, 12th Generation Intel® Core™, 9th Generation Intel® Core™
- Memory
- DDR5 SO-DIMM, RAM, DDR4 DRAM, DDR4 SO-DIMM
- Construction
- fanless, aluminum frame
- Applications
- for the food industry, industrial, for railway, for self-service information kiosk, for IoT applications, POS, for data acquisition systems, point-of-care, for medical applications, data acquisition, for marine applications, for the mining industry, for agricultural applications, for check-in kiosk, for the pharmaceutical industry, for the chemical industry, for hazardous areas, for clean rooms
- Protection level
- IP65, robust, NEMA 4
- Other characteristics
- HMI, SCADA
- Memory size
Max.: 64 GB
Min.: 4 GB
Description
10.1 inch Industrial HMI Touch Panel Computer
BENEFITES
- Onboard Intel? Celeron J4125/J6412 or 8th/10th intel Core i5/i7
- J4125/J6412: DDR4 SODIMM x1; Core i5/i7: DDR4 SODIMM x2
- LCD+HDMI Output, Support Dual view/Simultaneous display
- Edge to edge design with true flat surface, easy to clean
- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
Screen Diagonal (Inch) - 10.1”
Display Active Screen Size (cm) - 216.96(H)×135.6(V)
Aspect Ratio - 16:10
Physical Resolution - 1280×800
Maximum Resolution Supported - 1920×1200
Colors - 262K
Brightness (cd/m2) - 350
Contrast Ratio - 800:1
View Angels - 85/85/85/85
Backlight/Backlight Lifetime - LED Backlight with 50000Hours'Lifetime
