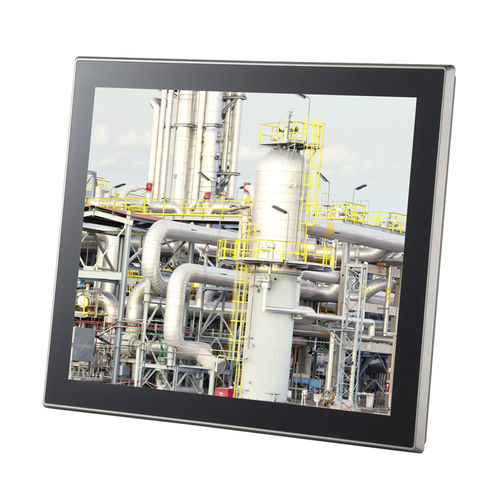

LCD panel PC ITD19PPCT5B-xxxxtouch screen19"Intel® Core i5
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, touch screen
- Display size
- 19"
- Processor
- Intel® Core i5, Intel® Celeron® J6412, Rockchip RK3588S, 9th Generation Intel® Core™, Intel® Celeron® N3350, Intel® Celeron® J4125, Rockchip RK3399 SoC, Rockchip RK3288 SoC, Intel® Core i7, 7th Generation Intel® Core™ i7, Rockchip RK3568, 11th Generation Intel® Core™, x86, 8th Generation Intel® Core™, 10th generation Intel® Core™, 12th Generation Intel® Core™
- Memory
- DDR5 SO-DIMM, RAM, DDR4 DRAM, DDR4 SO-DIMM
- Construction
- fanless, aluminum frame
- Applications
- POS, industrial, for IoT applications, for the food industry, for check-in kiosk, for data acquisition systems, for the chemical industry, for railway, for agricultural applications, for medical applications, data acquisition, for the pharmaceutical industry, for hazardous areas, point-of-care, for self-service information kiosk, for mobile applications, for clean rooms, for marine applications
- Protection level
- IP65, rugged, robust, NEMA 4
- Other characteristics
- HMI, SCADA
- Memory size
Max.: 64 GB
Min.: 4 GB
Description
19 inch Industrial HMI Touch Panel Computer
BENEFITES
- Onboard Intel? Celeron J4125/J6412 or 8th/10th intel Core i5/i7
- J4125/J6412: DDR4 SODIMM x1; Core i5/i7: DDR4 SODIMM x2
- LCD+HDMI Output, Support Dual view/Simultaneous display
- Edge to edge design with true flat surface, easy to clean
- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
Screen Diagonal (Inch) - 19”
Display Active Screen Size (cm) - 376.32 (H) ×301.06(V)
Aspect Ratio - 4:3
Physical Resolution - 1280×1024
Maximum Resolution Supported - 1920×1080
Colors - 16.7M
Brightness (cd/m2) - 250nits
Contrast Ratio - 1000:1
View Angels - 85/85/80/80
Backlight/Backlight Lifetime - LED Backlight with 50000 Hours’ Lifetime
