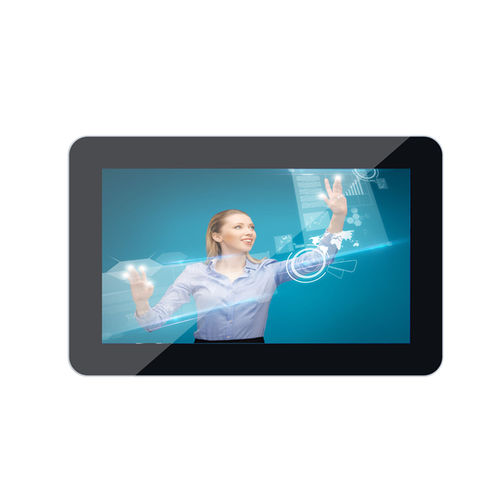

PCAP capacitive touch screen monitor ITD07OFT5K1
LCDmultitouch screenLED backlight

PCAP capacitive touch screen monitor
PCAP capacitive touch screen monitor
PCAP capacitive touch screen monitor
Add to favorites
Compare this product

Go to the Shenzhen ITD Display Equipment Co., LTD website for more information

Characteristics

Technology
LCD, PCAP capacitive touch screen, multitouch screen, LED backlight
Display size
7"
Resolution
1920 x 1080, 1024 x 600
Mounting
VESA mounting, desktop
Applications
for in-line monitoring, for displays, industrial, for IoT applications, for industrial machines, for agricultural applications, multifunction, storage, for heavy-duty applications, POS, for clean rooms, for indoor use, for vehicles, video surveillance, for hazardous environments, for pharmaceutical applications, for medical applications, marine, for chemical applications, for aerospace applications, process, for military applications, for CNC machines, for the automotive industry, for food applications, construction
Other characteristics
Linux, Android, IP65, rugged, wide viewing angle

Description

-All steel/aluminum construction provides rugged frame for public use environments -Ten independent touch points, plug and play -Eliminates dust and debris build-up at the edge and corners of the display -Provides improved power efficiency and reduced consumption -Responds to a light touch in activating response -Easy-to-clean surface without bezels -Long lasting product cycle for continuity thru all phases of project OVERVIEW ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for retail, kiosks and interactive digital signage. IP Rating IP65 Front Panel Screen Diagonal (Inch/cm) 7” Display Active Screen Size (mm) 154.214(H)×85.92(V) Aspect Ratio 16:9 Physical Resolution 1024×600 Maximum Resolution Supported 1920×1080 Colors 262K/16.7M Brightness (cd/m2) 400 Contrast Ratio 800:1 View Angels 75/75/70/75 Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime Touch Technology Projected Capacitive Touch Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Touch Life 50,000,000times/click Surface Hardness 7H Video Input 1 × VGA 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Power Connector 1 × DC2.0 Operating Temperature Range -10~60°C (-20~70°C Optional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input DC 12V Power Consumption 6W Side Mounting Brackets, Desktop Stand, VESA Mounting Brackets, Webcam
