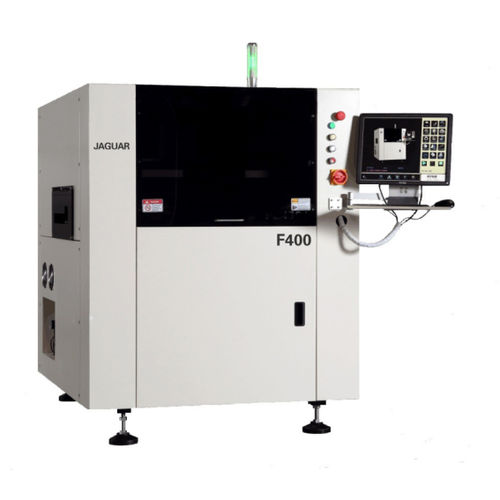

Automatic stencil printer F400
solder pasteSMT

Automatic stencil printer - F400 - Shenzhen Jaguar Automation Equipment Co., Ltd. - solder paste / SMT
Automatic stencil printer - F400 - Shenzhen Jaguar Automation Equipment Co., Ltd. - solder paste / SMT
Add to favorites
Compare this product


Characteristics

Control
automatic
Number of colors
solder paste
Applications
SMT

Description

SMT Solder Paste Stencil Printer Name: F400 Automatic Solder Paste Printer Model: Jaguar F400 Brief: High accuracy printing printer designed for SMT high precision screen printing or stencil printing in PCB assembling. Specifications: PCB Parameters PCB Maximum PCB Size (X x Y) 450mm x 320mm Minimum PCB Size (X x Y) 50mm x 50mm PCB Thickness 0.4mm~6mm PCB Warpage Max. PCB Diagonal 1% Maximum PCB Weight 6Kg Plate Edge Clearance Up to 3mm Maximum Bottom Clearance 16mm Speed of Transmission 1500mm/Second(Max) Apart from the Ground Transmission Height 900±40mm Transfer Orbit Direction Left-Right, Right-Left, Left-Left, Right-Right Transmission Mode One Stage Clamping Direction of PCB Top parallelogram plate institutions flatten software adjustable elastic pressure side pressure, the bottom of the overall multi-point partial vacuum or suction vacuum Board Support Method Magnetic Pin/Contour Blocks/Special Workpiece Fixture Printing Parameters Print Head Two Single Direct Connection Motor Drive Form Work Frame Size 370mm x 470mm~737 mm x 737 mm Maximum Printing Area (XxY) 450mm x 320mm Squeegee Type Steel/Rubber Squeegee Blade(Angle:45/55/60 or according to actual effect to set the angle) Length of Squeegee 220mm~500mm Height of Squeegee 65±1mm Thickness of Squeegee 0.25mm Diamond-like carbon Printing Mode Single or Double Squeegee Printing Stripping Length 0.02 mm - 12 mm Printing Speed 6 mm/sec - 200 mm/sec Printing Pressure 0.5kg - 10Kg Printing Stroke ±200 mm(from central) Image Parameters Imaging Horizon (FOV) 6.4mm x 4.8mm Adjustment Range X,Y:±7.0mm,θ:±2.0°. Benchmark Type Standard Shapes (Refer to SMEMA SPEC) PAD and Opening
