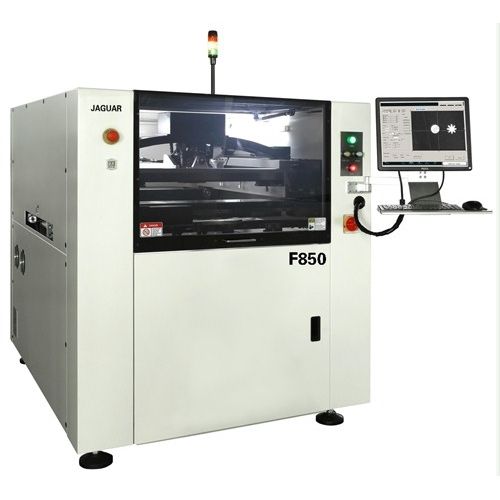

Automatic stencil printer F850

solder pasteSMTprogrammable

SMT Solder Paste Stencil Printer Name: F850 High Accuracy Automatic Stencil Printer Model: Jaguar F850 Brief: high accuracy printing machine designed for high precision screen printing or stencil printing in SMT PCB assembling. Product Features： a) Support spectrums of PCB sizes from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm. b) High printing accuracy 1. High positioning accuracy, repeated positioning accuracy ±0.01mm; printing accuracy ±0.025mm. 2. Support glue printing c) Automatic control improves production efficiency, quality control and cost saving: 1. Automatic stencil positioning 2. Automatic PCB calibration 3. Programmable squeegee pressure 4. Automatic printing 5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type) d) Adopt company independently developed suspended print head and Programmable pressure adjustment system. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste. e) Programmable motor controls separation speed and distance among the squeegee, stencil and substrates, to realize multi-method separation. f) Multi-functional PCB fixed positioning system, convenient and accurate PCB positioning. g) Upward and downward visual positioning. h) Built-in image processing system i) Support 2D, SPC functions
