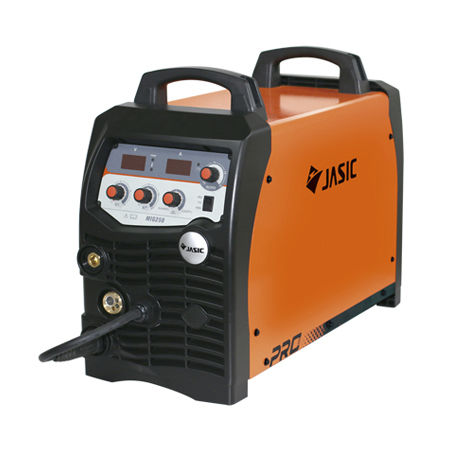

MIG-MAG welder MIG250

inverter

INVERTER IGBT Compact design with 15kg size inbuilt wire spool accepted. Adjustable inductance for controlling arc to optimize weld performace. Digital display for current and voltage. Convertible polarity for Gas Metal Arc Welding and Flux Cored Arc Welding. High welding efficiency. Standard MIG/MAG Lift-arc TIG Gas/Gasless FCAW Built-in hot start Slow-feeding Burn-back adjustment Inching Current and voltage meters Optional VRD Spool gun Geared wire feeder 4-roll wire feeder Input power source - 1~AC230V±15% 50/60Hz Rated Input current (A) - 55 Rated input power capacity (KVA) - 12.6 MMA Output current range (A) - 15-220 MIG Output current range (A) - 35-250 Wire speed (m/min) - 1.5-16 No-load voltage (V) - 56 Rated duty cycle (%) @40℃ - 30 Wire diameter (mm) - 0.6/0.8/1.0 Efficiency (%) - 85 Power factor (cosφ) - 0.7 Protection class - IP21S Insulation class - F Dimensions (mm) - 627×267×452 Weight (Kg) - 26.8
