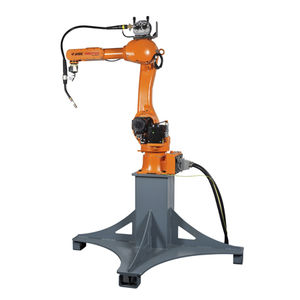

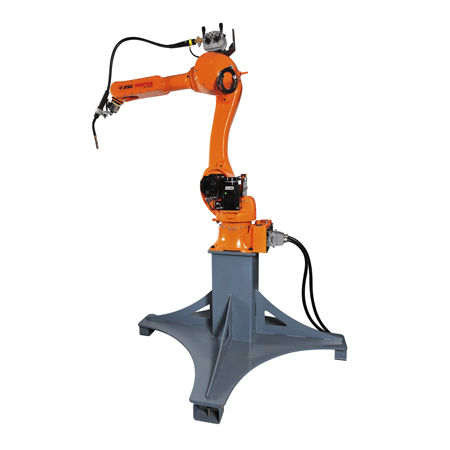

Articulated robot JR-1725/20

6-axisfor assemblyloading

Max. Speed Applying the light-weight arm, high output and rotary speed small motor to largely increase the maximum speed and acceleration. By integrating loading weight and posture, enhancing the performance on acceleration, greater ability can be performed, therefore work cycle time significantly shortened. Small Wrist and High Moment of Force Small wrist is able to run freely in narrow space. By applying high output torque, high rotary speed motor and strengthen rigidity on the arm, enhancing work load on the wrist, extend the choice on tongs, tools and shape of work piece. Large scope of action By increasing the range on each axle, enhance the maximum coverage, also, the coverage on lower and the area close to the body too, has increased. Therefore, the freedom of the layout increased. Well adaption on the environment Wrist protection level IP67 and base protection level IP65 (Except RS03N), base on the application on each joints with double seal structure and water-proof socket. High Scalability In optional packages, there are built-in electromagnetic valve and cable tester, application on variety of peripheral equipments, easily install/uninstall. In addition, every axle on every arm has screw hole for cable holder, for additional wires and pipes.
