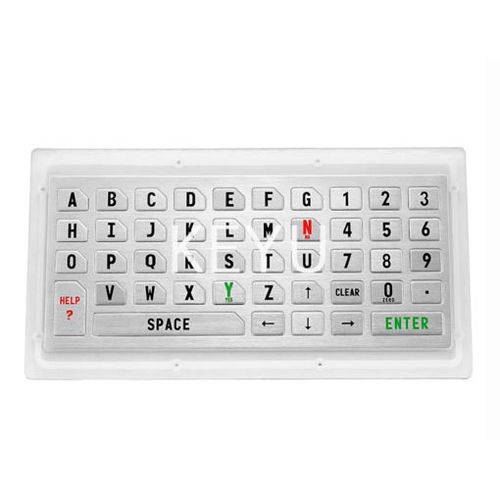

Industrial keyboard KY-PC-Kpanel-mountwith mechanical keyswithout pointing device
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mount
- Key type
- with mechanical keys
- Pointing device
- without pointing device
- Domain
- industrial, for self-service information kiosk
- Connection type
- USB, PS2
- Material
- metal
- Protection level
- dust-proof, waterproof, vandal-proof, rugged, IP65
Description
Dimension ：
Front Panel: 271*118.6 mm
Overall : 298*158.8 mm
Features:
Industrial metal keyboard
Water, dust and vandal resistant
Laser or Etching lettering
oneyear warranty, can be extended
Interface: USB、PS/2
Key size：14*14*4.5mm
DESCRIPTION
Mechanical / Electrical Data:
Power Supply - DC5V±5%
Working Current - <150mA
Interface - USB，PS/2
Key Trip - 1.5mm
Operation Force - <2N
Durability - ≥2million
Operation Temperature - -20℃~55℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa）
Storage Temperature - -30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa）
Mounting Way - Rear mounting or Front mounting
Compatible With Systems - Window XP、Window7、Window8、Linux、Ubuntu、Android
Approval - RoHS、IP65、FCC、CE
