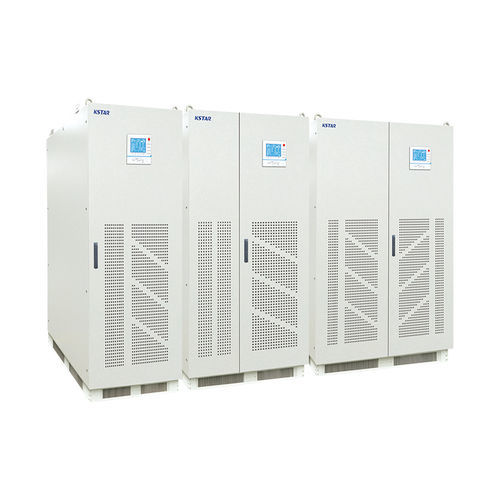

On-line UPS EP-IND-ZY series

parallelthree-phasepure sine wave

EP-IND-ZY is a three-phase in one-phase out online transformer-bansed industrial UPS. With anti harsh environment design，EP-IND-ZY serious industrial UPS has strong impact resistance（IP grade 31）and can be scaled to meet changing electrical requirements and is adaptable to the most stringent technical specification. It support the continuing demand from downstream refining and petrochemicals, upstream oil and gas, power generation, large steel plants, metallurgy & cnooc, nuclear power and the growing regulatory and safety needs of today’s industrial complexes. General Features ● 12 pulse rectifier technology ●3Phase In/1phase Out ●Input/output galvanic isolation ●IP31 ●Advance Battery auto float/boost charger, battery temperature compensation ●N+X parallel redundancy ●110%/125%/150% overload for 60min/10min/1min ●Power Walk in ●Load Bus Synchronization(LBS) ●5.7” or 7” touch-screen color monitor ●RS232, RS485(ModBus), Optional SNMP, Eight Dry contact Signals, Circuit breaker status, battery temperature sensor, etc. ●Perfect for oil and gas, refining, chemical, industrial power, power transmission and distribution, metallurgy, automotive, glass ● High power factor ● Wide input adaptability ● Optimized battery management ● N+X parallel redundancy ● Strong overload capability ● Generator mode ● Multi-protection ● EPO function ● User-friendly network management
