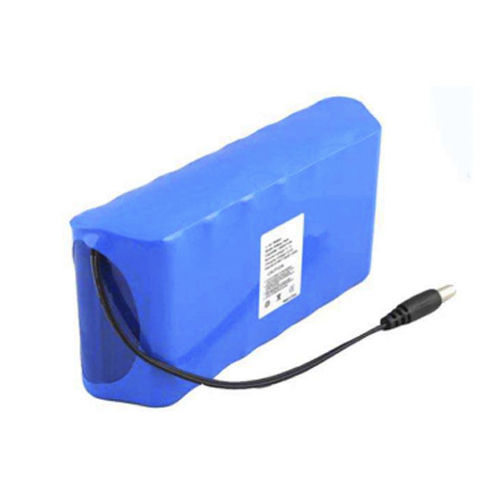

LiFePO4 battery

24 V

24V 20Ah Lifepo4 battery pack Used in network monitoring power supply, street lamp power supply, electric two-wheeled vehicle, equipment and instrument, LED power supply, advertising machine Rated voltage - 24V Rated Capacity - 20Ah Discharge cut-off voltage - 20V Charge protection voltage - 28.8V Maximum charging voltage - 29.2V Maximum charging current - 10A (0.2C) Maximum continuous discharge current - 20A Peak current - 50±3A 2S Rated discharge current - 20A Serial and parallel - 10P8S Internal resistance - ≤100mΩ Weight - 5Kg Cycle life - 1000 Times Charge and discharge interface - customizable Operating temperature - Recharge 0～45℃ Discharge-20℃～55℃ Storage temperature - 60-80%SOC -10℃～35℃ Parameters required for customized products Nominal voltage (V) - Rated discharge current (A) Rated capacity - Rated charging current (A) Rated energy - Range of working temperature Rated charging power - Size space Rated discharge power - Weight restriction
