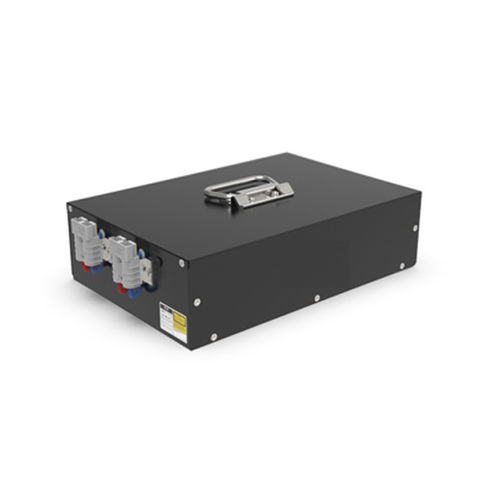

Customized 48V60AH Lithium Iron Battery
Used in AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts, sweepers, RVs (customizable)
With advantages such : the high reliability, lower cost ,long lifespan ,Clean and Green energy poses no pollution on our environment etc , which are good replacing lead-acid batteries in a wide range of applications for energy storage , e-vehicle , e-motorcycle , e-bike , rickshaw battery, forklift battery etc .
Rated voltage - 48V
Rated Capacity - 60Ah
Discharge cut-off voltage - 42V
Charge protection voltage - 58.8V
Maximum charging voltage - 59.5V
Maximum charging current - 12A (0.2C)
Maximum continuous discharge current - 50A
Peak current - 150±3A 2S
Rated discharge current - 30A
Serial and parallel - 2P14S
Internal resistance - ≤120mΩ
Weight - 23.0Kg
Cycle life - 2000 Times
Charge and discharge interface - Anderson (customizable)
Operating temperature - Recharge 0~45℃ Discharge -20℃~55℃
Storage temperature - 60-80%SOC -10℃~35℃
Parameters required for customized products
Nominal voltage (V) - Rated discharge current (A)
Rated capacity - Rated charging current (A)
Rated energy - Range of working temperature
Rated charging power - Size space
Rated discharge power - Weight restriction
