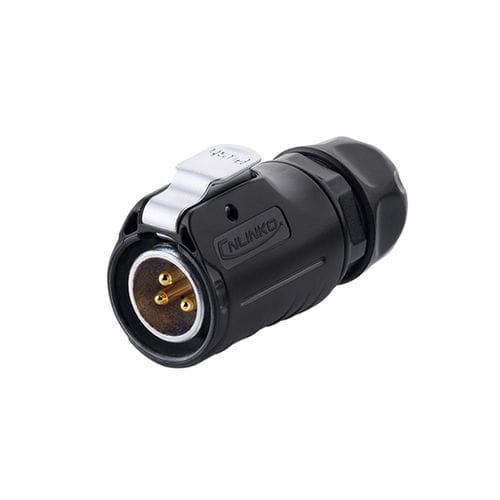

Electrical power supply connector LP-20-3

wire-to-wirecircularfemale

LP-20-3 pin plastic + metal circular wire-to-wire waterproof aviation plug connector Coexistence Of Quality And Safety Gold Plating Terminals Quick Lock Fireproof Muti-Way Waterproof Current :5-20A Imported raw materials 4U Gold Plating Terminals Real Gold Plating, Strong Conductivity Without Oxidize, Extend Service Life > 10000 times plug and unplug 365 Days Warranty High Conductivity International Certification Passed Certifications Chinese CQC ( Before CCC), Germany TUV and United States UL, etc muti-certifications from China and International. Multiple certifications escort for you. Application Cases of Security Equipment Monitoring system, Information Security Door, Outdoor video monitor Four-holeFlange Mounting Single Hole Mounting Male Single Hole Mounting Female In-line Cable Connector Current 5-20A Optional Different Pin number meets different current , will meet power and signal used in the same time. 20A 2/3/4Pin General Cable diameter: 9-13mm Single Pin: 2.5-4mm2 12A 5/7Pin General Cable diameter: 7-9mm Single Pin: 1.0-1.5mm2 5A 9/12Pin General Cable diameter:5-7mm Single Pin: 0.5-0.75mm2
