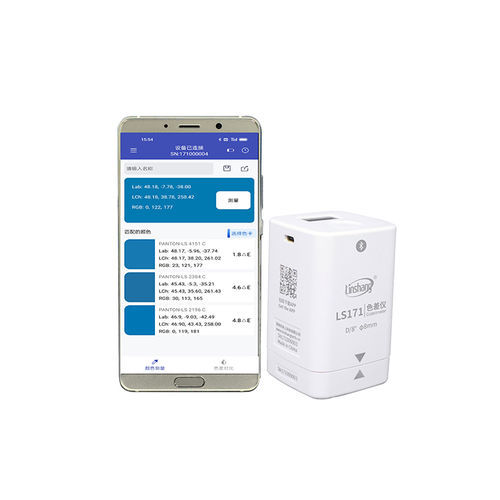

Portable colorimeter LS171

for color analysishigh-precisiontransmission

Provide color measurement and color comparison function Provide free colorimeter app Enable to store large amounts of color data LS171 is a smart colorimeter which can provide color scan and color comparison for materials. The colorimeter complies with relevant international CIE standards. It adopts D/8 illumination geometry and is equipped with a high-precision sensor that meets CIE. The colorimeter has good consistency and repeatability and need to be used with mobile app for accurate color measurement and quality control. Using this affordable colorimeter will boost your color quality when color requirements are too stringent to depend on visual evaluation alone. It is more accurate and reliable than other basic colorimeters. As a portable colorimeter, LS171 is widely used in car paint spraying, plastics, metal, hardware, furniture industry, rubber and other fields. Illumination geometry - D/8, Specular Component Include (SCI) Illumination light source - Full spectrum LED light source Measuring aperture - 8mm Measurement conditions - Light source D65, field of view 10° Measuring time - about 1s Color spaces - CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formulas - ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability - Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Power supply - Rechargeable lithium battery 3.7V@700mAh,can continuously measure 10,000 times underfull charge Dimension - 57×57×89.4mm (L*W*H) Weight - about126g Display - 0.96 inch OLED Data transmission - Bluetooth Charging port - USB (Type-C)
