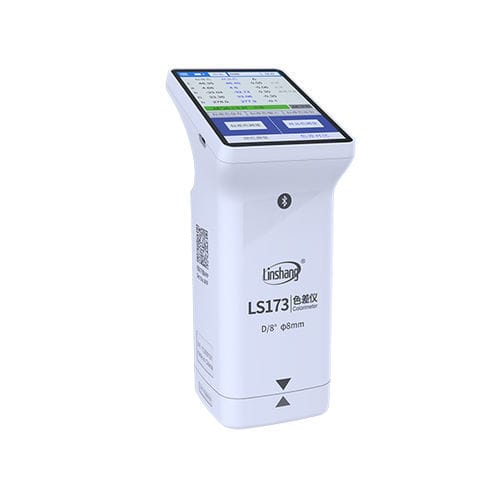

Portable colorimeter LS173

for color analysisindustrial

Touch screen, no button setting required Built-in multiple electronic color charts Color difference comparison, QC mode LS173 is a portable multifunctional colorimeter with D/8° (SCI) optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, providing an excellent operating experience. The colorimeter integrates multiple natural color charts, and can quickly match the measured color to the closest color codes. The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set. The color difference formula can be flexibly selected, which can realize rapid QC testing. LS173 usually used in paint, metal, stone, ceramic tiles and plastics industries for color measurement and management, color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss samples. Illumination geometry - D/8, specular component include (SCI) Illumination light source - Full spectrum LED light source Measuring aperture - 8mm Measurement conditions - Light source D65, field of view 10° Measuring time - About 1s Color space - CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formula - ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability - Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at aninterval of 3s after calibration) Dimension - 86mm×62.5mm×158mm Weight - About 245g
