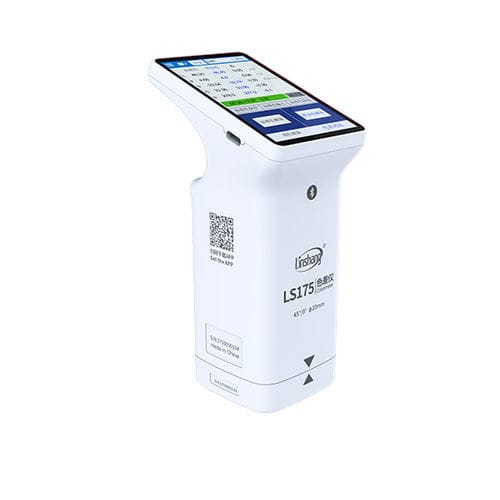

Handheld colorimeter LS175

for color analysisfor the textile industry

Suitable for color measurement on textured or rough surface materials such as textiles Color scan and Color comparison functions LS175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, and can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts helps matching the closest color number of scanned color in short time. The device also has color comparison function, supporting multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspcetion. The device can connect APP and PC software, expanding its functions such as color sharing and printing report. As it can measure larger area to acquire more even color data with its large 20mm measuring aperture, LS175 has wide application in color measurement and widely used in industries of textiles, leather，fabrics and wood furniture. Illumination geometry - 45/0 (45° annular illumination, 0° viewing angle) Illumination light source - Full spectrum LED light source Measuring aperture - 20mm Measurement conditions - Light source D65, field of view 10° Measuring time - 1s Color space - CIE Lab、Luv、LCh、Yxy、CMYK、RGB、Hex Color difference formula - ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00 Repeatability - Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Dimension - 86mm X 62.5mm X 158mm Weight - 225g
