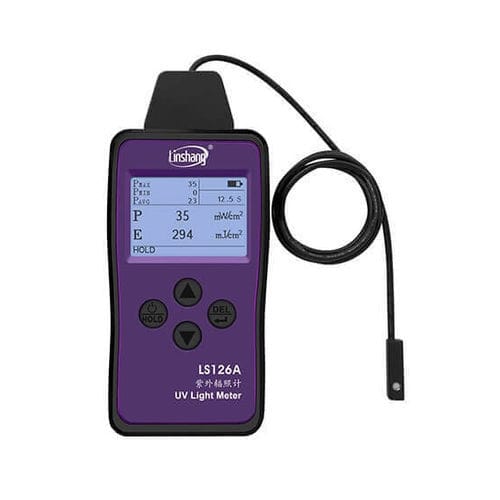

Digital light meter LS126A

UVhigh-speed

Suitable for UV LED curing Ultra-small probe, narrowest width of 7.2mm Wide spectral range: 340nm-420nm With a high-speed sampling speed of 2048 times per second LS126A UV intensity meter is ideal for testing the intensity and energy of UVA band in UV LED light source, mainly contains 365nm, 375nm, 385nm, 395nm, 405nm band, mostly used in curing and exposure industry. The meter has a wide spectral response range, suitable for measuring various wavelengths from 365nm to 405nm. The width of the probe is only 7.2mm, which is applicable for measuring the narrow space where the ordinary probe is not easily placed. Spectral response - 340nm-420nm, calibrated with 395nm UV LED light source Power measuring range - 0 - 20000 mW/cm² Resolution - 1 mW/cm² Energy measuring range - 0-9999999mJ/cm2 Record time - 0-99999s Accuracy - ±10 % Sampling speed - 2048 times/second Optional unit - mW/cm²(default), W/cm², W/m² Test hole diameter - ￠=3mm Probe dimension - 36mm ×7.2mm ×4.7mm(L*W*H) Host dimension - 170mm ×76mm×26mm (L*W*H) Probe wire length - 0.8m Weight - About 232g (with battery) Display - 240*160 dot matrix LCD Battery - 4 AAA alkaline dry batteries The width of the probe is narrow, free from the limitations of measurement space The probe adopts ultra-small size design, which can measure the narrowest width of 7.2 mm The probe collects data at a rate of 2048 times/second, enabling accurate calculation of UV energy The smart meter has intelligent data statistical function that is able to record the maximum, minimum, real-time and average power values of the UV energy and the cumulative energy value.
