Digital light meter LS125

UV

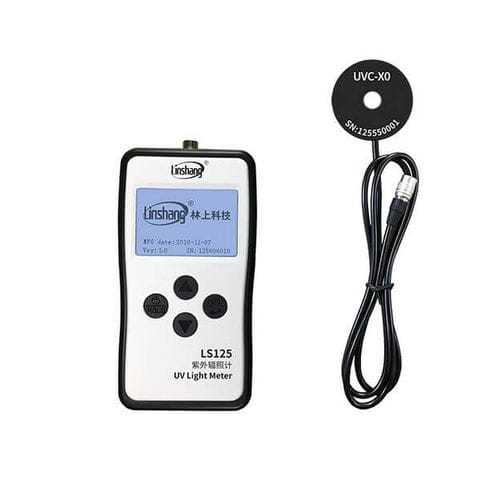

Suitable for 254nm UV sterilization lamp Spectral response range: 230nm-280nm, λp = 254nm Power measuring range: 0 - 200000 μW / cm² The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVC-X0 probe is one of 9 probes which is equipped with the LS125 UV radiometer host. The response wavelength of the probe is 230nm-280nm. It is a digital probe that professionally detects the intensity and energy of 254nm high-power UVC germicidal lamps. Hospitals, disease control centers, pharmaceutical plants, food plants, schools, kindergartens, movie theaters, buses, offices, homes, and other places where people need to use UVC sterilization will use the UVC-X0 probe to test the intensity of UVC. Spectral response - 230nm-280nm, λp = 254nm Power measuring range - 0 - 200000μW/cm² Resolution - 0.1μW/cm² Energy measuring range - 0-9999999μJ/cm² Record time - 0-99999s Measuring accuracy - ±10% Sampling speed - 6 times/second Optional unit - μW/cm²(default), mW/cm², W/m² Test Hole Diameter - ￠=10mm Probe size - Diameter 39mm × thickness 15mm Packing box dimension - 24*6*5cm (L*W*H) Specialized used in UVC low pressure mercury lamp inspection Spectral response range of the probe is 230nm-280nm with its peak wavelength calibrated at 254nm Maximum measurement power can reach to 200000 μW/cm² The probe can measure high-power UVC germicidal lamps and the maximum power can reach 200,000 μW/cm² and the instrument can simultaneously display the energy value and power value Adopting advanced digital probe technology, all data collection and processing are completed inside the probe.
