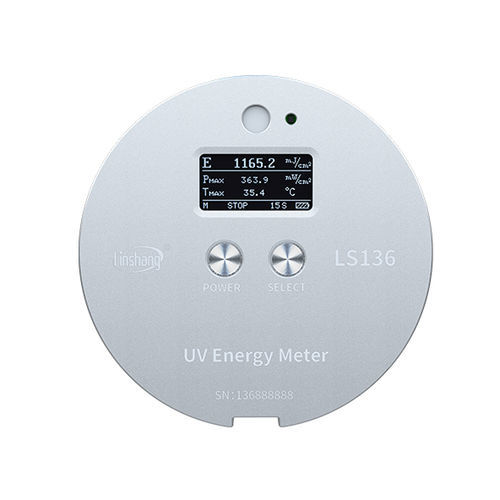

Energy meter power meter LS136

Suitable for high pressure mercury lamp For high pressure mercury lamp, halogen lamp 7.6mm thickness and 102mm diameter, simple operation Long-term for high temperature resistance LS136 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and intensity in high pressure mercury lamp, halogen lamp and other light sources. It can be used to measure UV intensity, energy and temperature in a variety of UV curing machine, UV coating machine, exposure machine, dryer, printing machine and other equipment. The UV energy meter can be measured in narrow spaces with 7.6mm thick. Equipped with a high temperature protective cover, still operate in high temperature environment. Spectral range - 315nm-400nm, λp = 365nm Power measuring range - 0-2000mW/cm² Power resolution - 0.1mW/cm² Energy measuring range - 0-999999mJ/cm² Energy measuring accuracy - ±10%, ±5% (typical) Sampling speed - 2048 times/second Recording period - 32 min Power supply - Rechargeable lithium battery 3.7V@400mAh Display - 128X64 Dot matrix OLED Dimension - Diameter 102mm* thickness 7.6mm Weight - 136g Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement. The content spectral range is 315nm-400nm, and the peak wavelength is 365nm. Professional high pressure mercury lamp, halogen lamp and other light source used for the uv energy measurement. In automatic mode, trigger and end measurement automatically, measure curing time and energy value accurately
