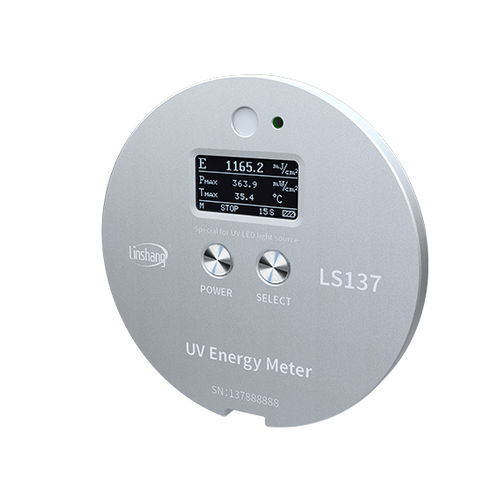

Energy meter power meter LS137

Suitable for UVLED light sources Response range: 340nm-420nm, calibrated at 395nm LED 7.6mm thickness and 102mm diameter , simple operation Long-term for high temperature resistance LS137 UV energy meter can simultaneously display UV intensity, UV energy and temperature value, suitable for measuring wavelength of 365nm, 375nm, 385nm, 395nm, 405nm and other UVALED light source. Mainly used for UV drying machine, curing machine, mobile phone UV coating machine, exposure machine, printing machine and other equipment of UV radiation intensity and energy detection. The instrument has a measuring range of up to 40000mW/cm2, and can measure UV intensity, energy and temperature at the same time. The UV energy meter can be measured in narrow spaces with simple operation. Equipped with a high temperature protective cover, still operate in high temperature environment. Spectral range - 340nm - 420nm, calibrated at 395nm LED light source Power measuring range - 0-40000mW/cm² Power resolution - 1mW/cm² Energy measuring range - 0-999999mJ/cm² Energy measuring accuracy - ±10%, ±5% (typical) Sampling speed - 2048 times/second Recording period - 32 min Power supply - Rechargeable lithium battery 3.7V@400mAh Display - 128X64 Dot matrix OLED Dimension - Diameter 102mm* thinkness 7.6mm Weight - 136g LS137 has a wide spectrum response range of 340nm-420nm, suitable for measuring 365nm, 385nm, 395nm, 405nm and other wavelengths of UV LED light source. Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement.
