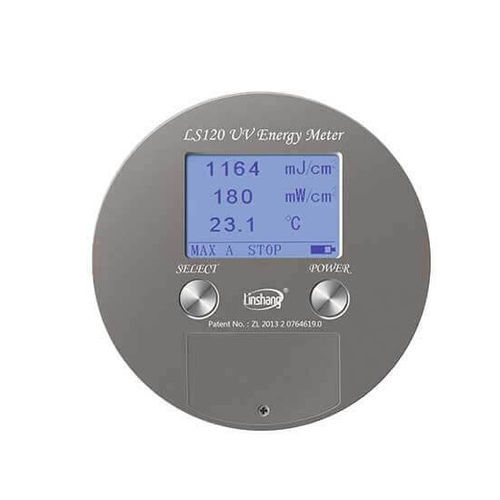

Energy meter power meter LS120

opticaldigitalUSB

For high pressure mercury lamp and halogen lamps Spectral response range: 315nm-400nm, λp = 365nm Record UV intensity, energy, temperature, test duration together Support PC software LS120 UV energy meter can not only measure energy, power, temperature and measuring time at the same time but also display the energy and power curves, export data and print test report. It has created many firsts in the UV energy meter industry: The first UV energy meter that can display the temperature curve The first UV energy meter can measure real-time temperature and power The first UV energy meter with a built-in timer that accurately records the curing time The first UV energy meter that can print a test report via a USB connection to a computer LS120 UV energy meter is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing and other fields. It is suitable for energy measurement of high pressure mercury lamps, halogen lamps, gallium lamps, iron lamps, xenon lamps and other light sources. Application - Light intensity, energy and temperaturemeasurement of high pressure mercury lamp Spectral range - 315nm - 400nm, λp = 365nm Power measuring range - 0 - 2000 mW/cm² Power resolution - 0.1 mW/cm² Energy measuring range - 0 - 999999mJ/cm² Energy measuring accuracy - ± 10% , ± 5% (typical) Temperature measuring range - -55°C - +125°C Sampling speed - 2048 times/second Power data storage interval - 32 times/second Temperature data storage interval - 2 times/second Recording period - 32 min Power supply - 2 AAA alkaline dry batteries Display - Dot matrix LCD Test Hole Diameter - ￠10mm
