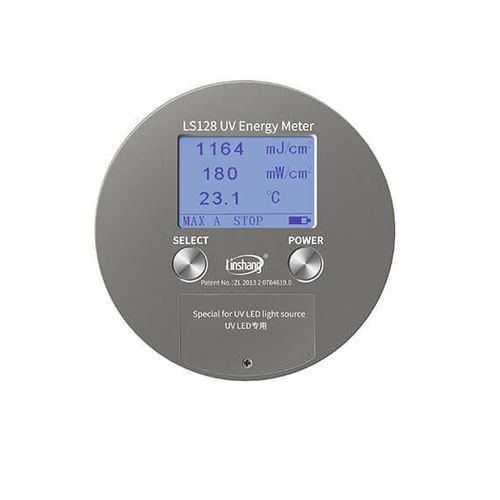

Energy meter power meter LS128

Special for UV LED (365, 385, 395, 405nm, etc.) UV intensity measuring range of 40000 mW/cm² Record UV intensity, energy, temperature and curing time together Provide PC software LS128 is a professional UV energy meter for testing UV LED light sources and has various excellent achievements: The first UV energy meter for UV LED light source testing. The first wide-range UV energy meter with a range of 40W/cm². The first UV energy meter for a wide spectrum (340nm-420nm). The first UV energy meter that measures temperature and power at the same time and can display process curves. Its spectral response range is 340nm-420nm and it can test various wavelengths of 365nm, 375nm, 385nm, 395nm, 405nm and other UV LED light source. Application - Light intensity, energy and temperature measurement of UV LED light sources Spectral range - 340nm - 420nm, calibrated at 395nm UV LED light sources Irradiance measuring range - 0 - 40000 mW/cm² Irradiance resolution - 1 mW/cm² Energy measuring range - 0 - 999999 mJ/cm² Energy measuring accuracy - ± 10% , ± 5% (typical) Temperature measuring range - -55°C -125°C Sampling speed - 2048 times/second Irradiance data storage interval - 32 times/second Temperature data storage interval - 2 times/second Recording period - 32 min Power supply - 2 AAA alkaline dry batteries Display - 240*160 Dot matrix LCD Test Hole Diameter - ￠10mm Dimension - Diameter 120mm * Thickness 13mm Weight - 327g
