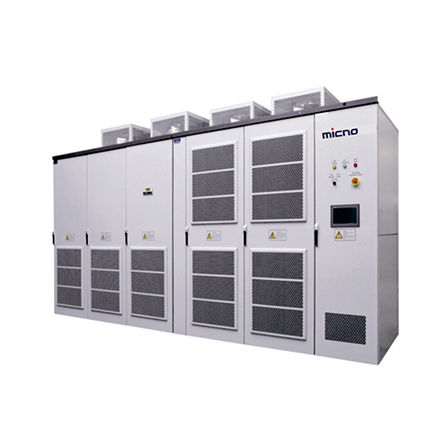

High-voltage frequency inverter HE1000 Series

vector controlthree-phasedigital display

HE1000 Series Vector High Voltage Inverter HE1000 series vector high-voltage inverter is the second-generation high-voltage frequency conversion speed regulation device independently developed, designed and produced by Shenzhen MICNO Electric Co., Ltd. The system adopts the most mainstream power unit series technology, with DSP+ARM+FPGA three-core processor as the control core, integrating the most advanced motor vector control algorithm, with high control precision, fast response, low frequency and high torque. Features. It is very suitable for high-voltage asynchronous motor and synchronous motor energy-saving speed regulation and process improvement and has been widely used in fans, pumps, compressors, belt conveyors, hoists and other loads. Features of HE1000 Series Vector High Voltage Inverter Feature 1: Three Control modes 1, High performance V/F control. (Fans, Pumps, Air compressors, etc). 2, Open loop vector control. (Belt conveyer, mill drive, fibrizer crusher, etc.) 3, Close loop vector. (Applicable to internal mixer, hoister machine, etc.) Feature 2：Multiple types of motor drives Support Asynchronous motors Synchronous motors (Include PM synchronous motors) Feature 3：Four-Quadrant Drive Power units use IGBT for rectification, dual-energy flow, energy-saving and environmental protection. With full rated power energy regenerative ability. Feature 4：LVRT Low Voltage ride through Wide voltage anti-interference capability. The system has AVR function for stable system output when the bus voltage fluctuates frequently.
