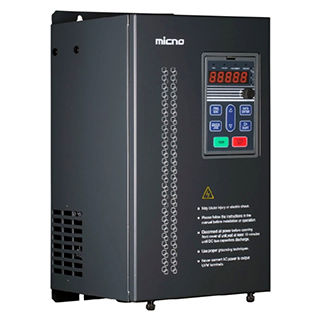

Spindle servo-drive KE600B Series

three-phasedigital displayvector control

KE600B Series Spindle Servo Drive KE600B series high-performance spindle servo drive built-in position loop and servo positioning function. When used in the machine, it can realize closed-loop control of the spindle motor which has the encoder with the fast response and smooth speed feature.KE600B could be widely used in motor driving applications with a higher requirement on position control. Features of KE600B Series Spindle Servo Drive • Comprehensive parameter identification With comprehensive parameter identification, simultaneously compatible with dynamic and static identifications for both synchronous motors and asynchronous motors. • Multi-motor switching Built-in multiple motor parameters, supporting multi-motor switching. • Modular design, compatible with various expansion cards KE600B has superior expansion capability. Users can choose PG card, I/O expansion card, MODBUS communication card, injection molding card, pulse expansion card, according to their actual needs. • Fast dynamic response Sensorless vector control, dynamic response time<20ms; Close-loop vector control, dynamic response time<5ms. • High-precision torque control When close-loop vector control, the torque control accuracy achieving ±5%, easily responding to tension winding control. • High start torque, and super low-frequency load-carrying capability 0.5Hz, 150% start torque (sensorless vector control asynchronous motors)0Hz, 200% startup torque (close-loop vector control asynchronous motors)
