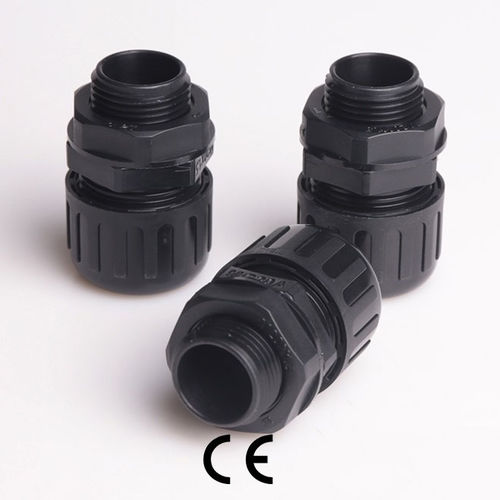

Screw-in fitting MIL-WCTF
Add to favorites
Compare this product
Characteristics
- Attachment
- screw-in
- Diameter
12 mm
(0.472 in)Max.: 20 mm
(0.787 in)Min.: 12 mm
(0.472 in)- Operating pressure
1 bar
(14.5 psi)Max.: 1 bar
(14.5 psi)Min.: 0.5 bar
(7.25 psi)
Description
Product details
Thread: Metric, PG, G(PF), NPT
Materials: UL approved and halogen-free nylon PA66(Flammability UL94V-2) for A.C.F parts. EPDM rubber for B. D parts.
(Accept to order super rubber: high temperature resistance, strong acid/alkali, etc)
Wording temperature：-40℃-100℃
Protection Degree: IP68-10
Features：This products has the best power for the water compression force from any angle which can keep 100% waterproof and airtight function.
Colors：Black, gray, and other colors available upon request.
Catalogs
No catalogs are available for this product.
See all of Shenzhen Milvent Technology Co.,Ltd‘s catalogsOther Shenzhen Milvent Technology Co.,Ltd products
Plastic/Brass Cable Gland
