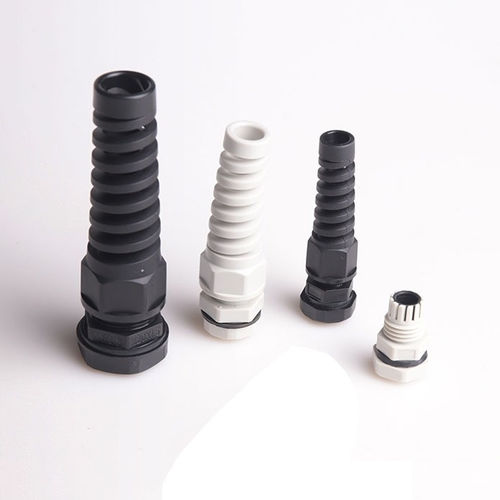

Nylon cable gland MIV-BPNCGBIP68
Add to favorites
Compare this product
Characteristics
- Material
- nylon
- Protection level
- IP68
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Product details
Thread：Metric, PG, G(PF), NPT thread
Material：UL approved nylon PA66 ( Flammability UL 94 V-2) for A, C, E, F parts .( Accept to make flammability UL 94V-0).
EPDM rubber for B, D parts (Also accept to make supper rubber: resist high temperature, resist strong acid/alkali,etc)
Protection degree：IP68-10
Wording temperature：-40℃-100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃-80℃ in dynamic state,or instantaneous heat resistance up to 100℃.
Features：The claws and seals of excellent design, sealing nut have a click sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol,oil, grease and common solvency.
Colors：Black, gray, and other colors available upon request.
