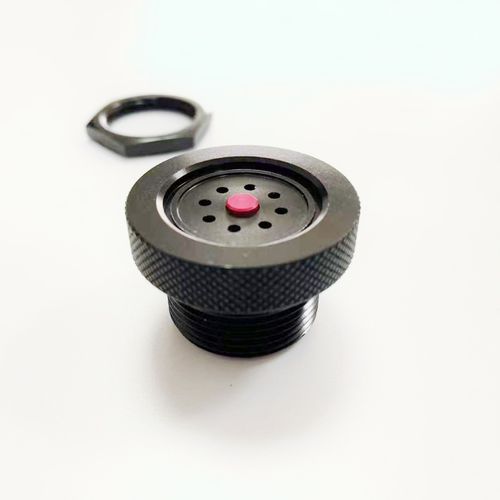

Aluminum breather valve TA238-R

corrosion-resistant

Fulfilling the MIL-DTL-27166 and SAE AS27166 standards, the MIV-MIV-TA238-R Breather Valve offers a cost-effective solution with a higher flow rate compared to the TA294-R model. Ideal for transit cases and similar applications with volumes up to 33 cubic feet, it boasts a flow rate of 4.0 SCFM and adjustable settings ranging from 0.5 psi to 5.0 psi. The valve is lightweight, robust, tamper-resistant, and maintenance-free. Constructed entirely from corrosion-resistant materials, it features a silicone rubber seal. All MIV-MIV-TA238-R valves come standard with a recessed manual release push button, which facilitates the equalization of residual pressure or vacuum differentials for container opening. Please note that the MIV-MIV-TA238-R does not safeguard against water intrusion from high-pressure hoses. For such applications, consider using the TA330, TA333, or TA770 Breather Valves. Dimensionally, materially, and functionally identical to the Zero ZSP6-037 Breather Valve, the MIV-MIV-TA238-R comes with an o-ring gasket and hex nut. Optional RFI/EMI shielding is also available. Specifications: Materials: Housing & Hex Nut - Aluminum, O-Ring - MS28775-120 compliant Finish: Black anodized Mounting Requirements: O-Ring & hex nut, included Mounting Hole Diameter: 1.020 ± 0.015 (26 ± 0.38 mm) Maximum Wall Thickness: 0.375 (10 mm) Installation Torque: 30-40 in. - lbs. (3.4-4.5 N•m) Weight: 0.065 lbs. (30 grams) For wall thicknesses less than 0.110 (3 mm), additional washers (MILVENT P/N 300013-16, order separately) are recommended.
