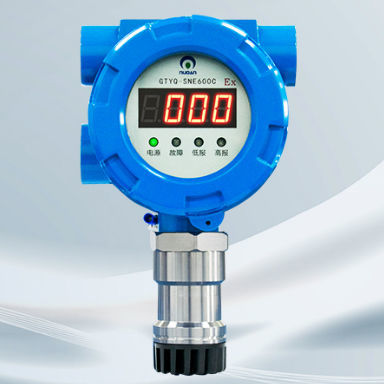

Gas detector GTYQ-SNE600C

powerhumiditydust

- Catalytic combustion sensor - Auto zero, auto fault-identification and auto error-warning - Pluggable intelligent sensor module, easy replacement - Multi-type output signal, multi-type cable connection - Digital LED display, wide operating temperature range, long lifetime - With gas Ex-proof and combustible dust Ex-proof dual certificates DETECTION PRINCIPLE - catalytic combustion DETECTION RANGE - 0~50/100%LEL DETECTION METHOD - Diffusion ACCURACY - ≤±2%F.S. RESOLUTION - 1%LEL REPEATABILITY - ≤±3%F.S. RESPONSE TIME - T90 ≤15S DISPLAY TYPE - Digital LED display and indication ALARM TYPE - LED light alarm, Ex-proof audible and visual alarm (optional) ADJUST METHOD - Infrared remote controller POWER SUPPLY - 24VDC（15~30VDC） POWER CONSUMPTION - ≤3W (with Ex-proof audible and visual alarm ≤5W) OUTPUT SIGNAL - 4~20mA（three wires） 3 sets of relay output (2A 30VDC) 24VDC relay output (for audible and visual alarm); MODBUS / RS 485(optional) CABLE CONNECTION - ≤1000m，3(4)×1.5mm2 ≤1500m,3(4)x2.5mm2 ELECTRICAL INTERFACE - NPT3/4″(F) (Other size is available as request) OPERATION TEMPERATURE - -40℃~+70℃ OPERATION HUMIDITY - 0~99%RH/Non condensation SENSOR LIFETIME - ≥5years EX-PROOF CERTIFICATE - Ex d ⅡC T6 Gb / Ex tD A21 IP66 T80℃ INGRESS PROTECTION - IP66 HOUSING MATERIAL - Aluminium alloy/Stainless steel OUTLINE DIMENSIONS 120×190×89mm（WxHxD） WEIGHT - 1,700g (Aluminium alloy housing)
