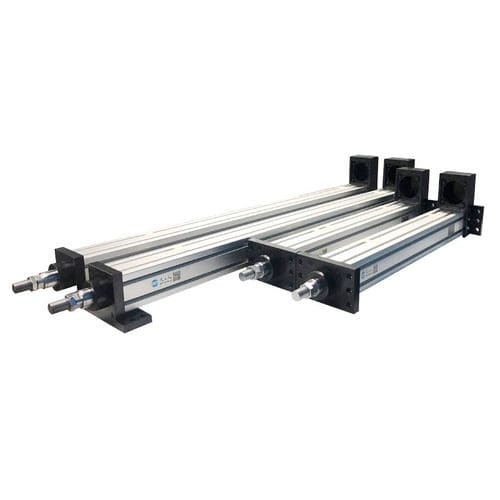

Electric cylinder DGRST-85ball screwsteelsealed
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw
- Material
- steel
- Protection class
- sealed
- Applications
- industrial, for lifting
- Other characteristics
- standard, high-speed, in-line
- Stroke
Max.: 1,200 mm
(47.244 in)Min.: 10 mm
(0.394 in)- Rod diameter
25 mm
(1 in)- Force
3.06 kN, 5.1 kN, 7.6 kN, 10.2 kN, 20.4 kN
- Torque
9.55 Nm, 14.3 Nm, 14.32 Nm, 28.65 Nm, 38.2 Nm
(7.044 ft.lb, 10.547 ft.lb, 10.562 ft.lb, 21.131 ft.lb, 28.175 ft.lb)- Motor power
2,000 W
(2.72 hp)- Speed
Max.: 800 mm/s
Min.: 250 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRST85, generally used for lifting emergency alert lights on the truck but not limited in this field, provides a force higher than 10KN; The cylinder is equipped with anti-rotation structure; DGRST85 Electric Cylinder With Ball Screw is a high-quality and reliable product that has a strong presence in the market. It is known for its exceptional performance and durability, making it a preferred choice for various industrial applications. With its superior build quality and precision engineering, this electric cylinder ensures smooth and efficient operation.
High Speed Electric Cylinder:
Two shapes： Inline and Parallel
