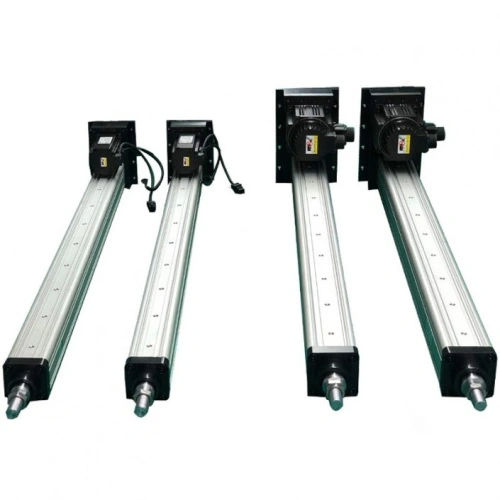

Electric cylinder DGRLT-75ball screwaluminum profileDC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- ball screw
- Material
- aluminum profile
- Motor
- DC
- Voltage
- 24 V, 48 V
- Applications
- for solar panels
- Other characteristics
- high-force
- Stroke
Max.: 1,500 mm
(59.055 in)Min.: 10 mm
(0.394 in)- Rod diameter
20 mm
(1 in)- Force
1.7 kN, 2.55 kN, 3.39 kN, 5.09 kN
- Torque
3.18 Nm, 4.77 Nm, 9.54 Nm, 12.7 Nm, 15.9 Nm
(2.345 ft.lb, 3.518 ft.lb, 7.036 ft.lb, 9.367 ft.lb, 11.727 ft.lb)- Motor power
1,000 W
(1.36 hp)- Speed
166 mm/s, 250 mm/s, 333 mm/s, 500 mm/s, 1,000 mm/s
- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
Electric Cylinder DGRLT-75 is intended for light duty and comparative medium force applications.24V 48V DC Linear Actuator helps maximize the efficiency of solar panels. DGR solar tracking actuators are equipped with ball screws for longer life at continuous duty cycles;It adopts simple but precise design model,offering customers a nice experience in practical use; it comes without an anti-rotation machanism by default, but the function can be added; DGRLT75 is made of aluminum profile material,square shape, which has beautiful appearance and texture,with more sturdy and durable performance than the general ordinary ones. According to its shape, you can choose Inline type or Parallel type for different usage.
